What is a CP test station?
What is a CP test station?

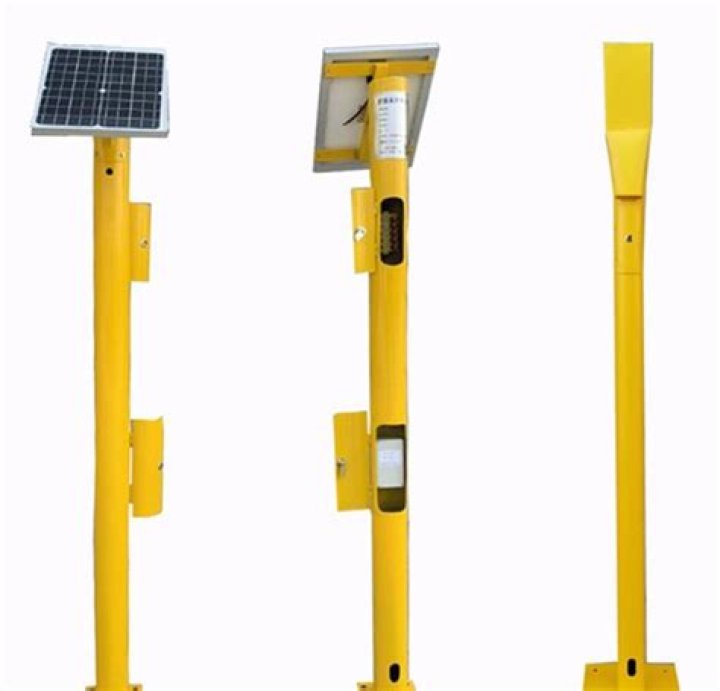

A cathodic protection test station is an integral part of any pipeline cathodic protection system. The cathodic protection test stations can be supplied as a kit with the cabling, reference electrodes and thermite weld equipment needed to complete the installation.
How do you test a cathodic protection system?
Connect a copper sulfate half-cell to your volt meter and make contact with the ground, while connecting your meter to underground metal. Afterwards, measure the pipe to soil voltage potential. Your readings should be 0.85 or higher. Measurements lower than 0.80 is indicative of corrosion.
What is a cathodic protection station?
Cathodic protection is an electrical method to avoid corrosion. Cathodic protection uses the natural energy found in all metallic substances to protect underground tanks and lines from corroding. In simple terms, metal substances, known as anodes are buried in the ground next to the tank and lines.
What is cathodic protection and how does it work?
Cathodic Protection (CP) is an electro-chemical process that slows or stops corrosion currents by applying DC current to a metal. When applied properly, CP stops the corrosion reaction from occurring to protect the integrity of metallic structures.
What is test station?
an establishment licensed to issue warrants of fitness for motor vehicles.
What is a good CP reading?
During a CP inspection, the crew expects that a range from -700mV to -1300mV will be observed for a pipeline or structure’s potentials and anything more negative than -800 mV is “good.” What is often overlooked is that a CP inspection system can be influenced by a number of factors including: trailing wire or deck lead …
How long does cathodic protection last?
Offshore oil and gas pipelines are protected with aluminium alloy or zinc bracelet anodes clamped over the protective coating and connected to the pipeline by short cables or welded connections. Such protection should last for 30 years or longer.
What is cathodic tank testing?
Cathodic protection testing must be performed on a regular basis. This testing will ensure that cathodic protection is being achieved, identify any adjustments or repairs required, and maintain regulatory compliance. Ensures the cathodic protection system is operating properly. Prevents corrosion damage to the …
Is cathodic protection AC or DC?
An impressed current cathodic protection system (ICCP) for a pipeline consists of a DC power source, often an AC powered transformer rectifier and an anode, or array of anodes buried in the ground (the anode groundbed).
What is cathodic reaction?
Cathodic reactions are reduction reactions which occur at the cathode. Electrons released by the anodic reactions are consumed at the cathode surface. Unlike an anodic reaction, there is a decrease in the valence state.
What is impressed current?
Impressed current is a type of cathodic protection utilizing electrochemical means to obtain protection against corrosion. The key in impressed current protection is to turn the whole structure cathodic in nature, or make it a current receiver rather than a current provider.
