What is DPSK modulation and demodulation?
What is DPSK modulation and demodulation?
DPSK is a technique of BPSK, in which there is no reference phase signal. DPSK encodes two distinct signals, i.e., the carrier and the modulating signal with 180° phase shift each. The serial data input is given to the XNOR gate and the output is again fed back to the other input through 1-bit delay.
What is DPSK modulation technique?

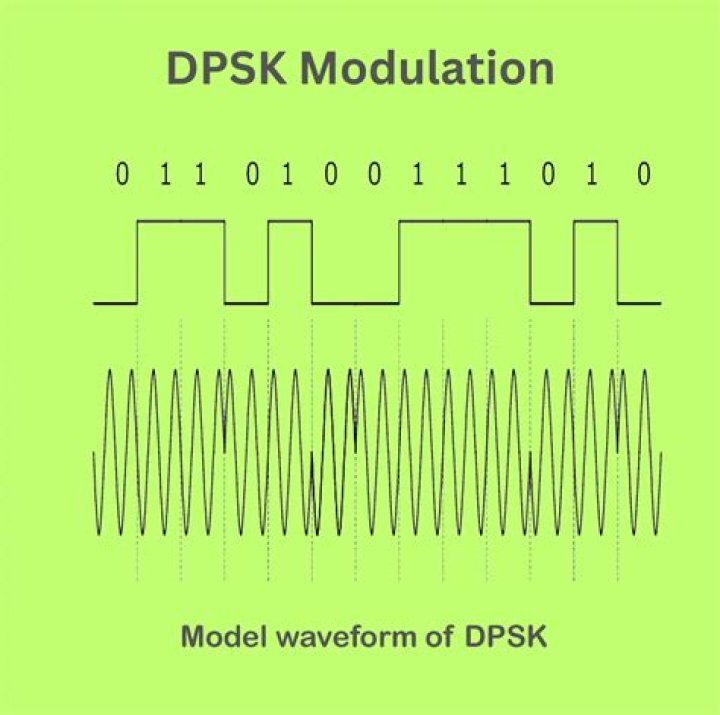

Definition : Differential phase shift keying (DPSK) is a common type of phase modulation that conveys data by changing the phase of the carrier wave. In DPSK the phase of the modulated signal is shifted relative to the previous signal element. The signal phase follows the high or low state of the previous element.
Why is DPSK needed?
Thus, DPSK is a general type of phase modulation and it is used to transmit data through the carrier wave by changing its phase. This type of PSK removes the need for a consistent reference signal at the end of the receiver by adding two fundamental operations at the end of the transmitter.
What is the main advantage of DPSK?
Following are the benefits or advantages of DPSK modulation: ➨DPSK modulation does not require carrier at its receiver circuit. Hence complex circuits are not needed. ➨Bandwidth requirement of DPSK is less compared to BPSK modulation.
How do you demodulate a DPSK?
DPSK demodulation using DPSK demodulator In DPSK demodulation, DPSK signal is passed to the balanced modulator and 1 bit delay circuit. The resulting signal is passed to the LPF which produces binary data. This is passed to comparator circuit (or Schmitt trigger circuit) to produce clean and high speed binary levels.
What is the difference between BPSK and DPSK?
Hence BPSK is used for low speed communications. DPSK stands for Differential Phase Shift Keying. It is the version of BPSK. In DPSK, there is no absolute carrier phase reference, instead transmitted signal itself used as phase reference.
What is the meaning of modulation and demodulation?
Modulation and demodulation Modulation is the process of encoding information in a transmitted signal, while demodulation is the process of extracting information from the transmitted signal.
What is the bandwidth requirement of DPSK?
Bandwidth is given as, BW = 2/T Where, T=2Tb. Hence, bandwidth for DPSK is BW = Fb. Thus the minimum bandwidth is DPSK is equal to Fb, the maximum base band signal frequency.
